- Supplied fully assembled
- Constructed from high-quality SPCC cold-rolled steel
- Steel thickness; rails and frame 2mm, front door 1.5mm, Rear door, shelves, and cable management 1.2mm

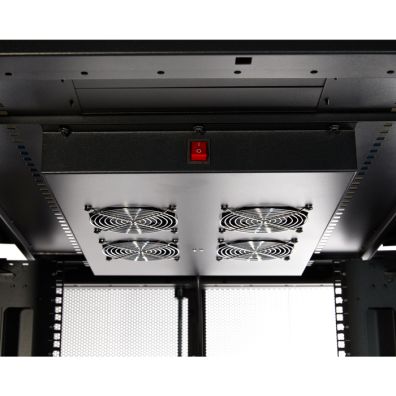

- 4-way ceiling mount fan kit
- 2 x PDU mounting rails in the rear of the cabinet
- Vertical cable management rails front and rear of the cabinet

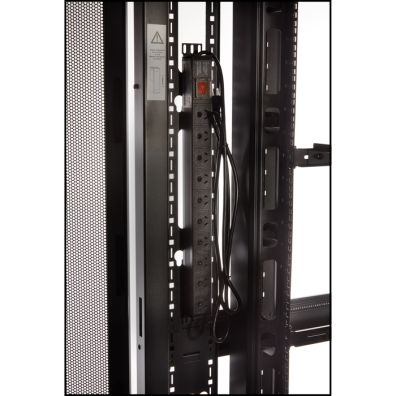

- 10-way vertical mounted power rail
- 40 sets of cage nuts
- 2 x fixed shelves and 1 sliding shelf installed

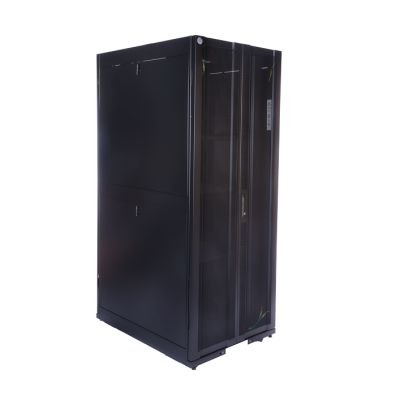

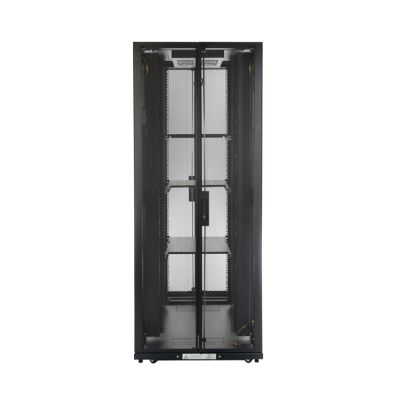

- Lockable Bi-fold front and rear mesh doors
- 2 x Lockable side panels on each side

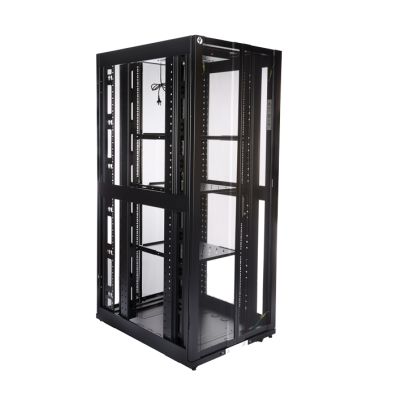

- Adjustable 19" L rails front and rear of server rack
- Leveling feet and lockable castor wheels

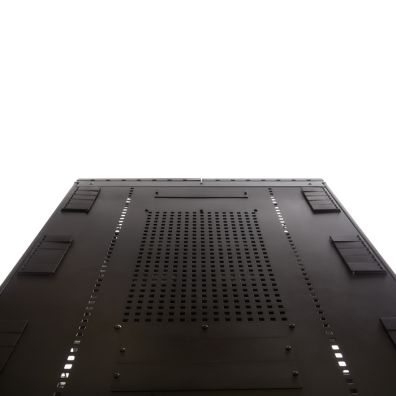

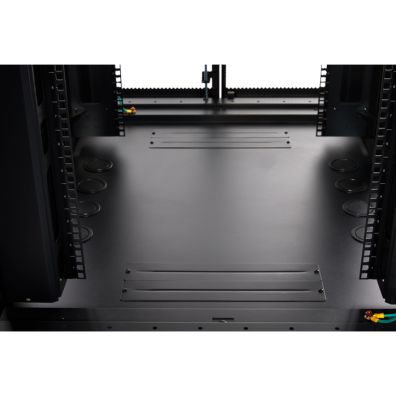

- Cable entry glands on the top and bottom

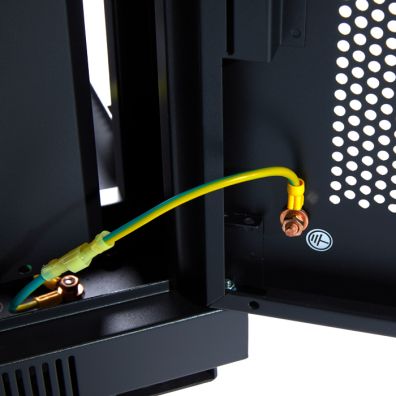

- Earthed doors and side panels
- Static loading capacity 1500kg
- Designed/built to ANSI EIA/ECA-310-E, IEC 297-2, DIN 41491/41494 standards
Specifications
| SKU | 002.001.4275 |
|---|---|
| Manufacturer Part# | 002.001.4275 |
| Product Highlight | Bi-Fold Mesh Door, Supplied fully assembled |
| Rack RU Size | 42RU |
| Cabinet Type | Full Height |
| Colour | Black |
| Material | Cold-rolled Steel |
| External Height | 2000mm |
| External Width | 800mm |
| External Depth | 1070mm |
| Internal Height | 1780mm |
| Internal Width | 470mm |
| Internal Depth (Front Rail to Back Door) | 880mm |
| Rail to Rail Depth | 580mm |
| Shelf Quantity | 3 |
| Fixed Shelf Depth | 550mm |
| Fixed Shelf Width | 440mm |
| Sliding Shelf Depth | 500mm |
| Sliding Shelf Width | 420mm |
| Shelf Depth | 550mm |
| Reversible Hinges | No |
| PDU Mounting Rails | 2 at rear |
| Tempered Glass | No |
| PDU | 1 x 10 Way Vertical |
| Vertical Cable Management | 4 (2 front and 2 rear) |
| Carton Height | 2020mm |
| Carton Width | 830mm |
| Carton Depth | 1100mm |
| Carton Weight | 163kg |
| Warranty | 3 Years |
4Cabling

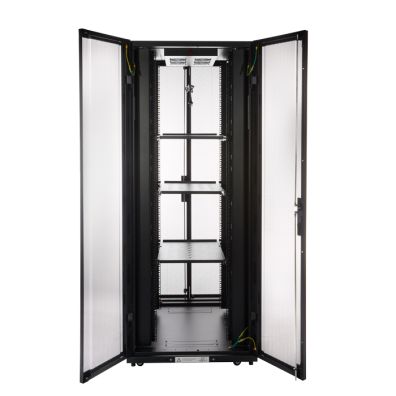

4Cabling 42RU 1070mm Deep x 800mm Wide Premium Server Rack with Bi-Fold Mesh Door
