- Supplied Fully Assembled
- Constructed from High-quality Cold-rolled Steel
- Rails 2mm, Frame and Doors 1.2mm, Panels, Shelves and Cable Management 1.2mm

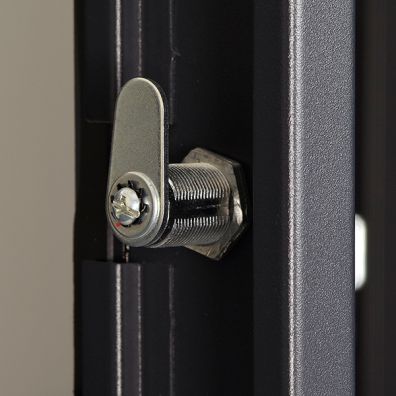

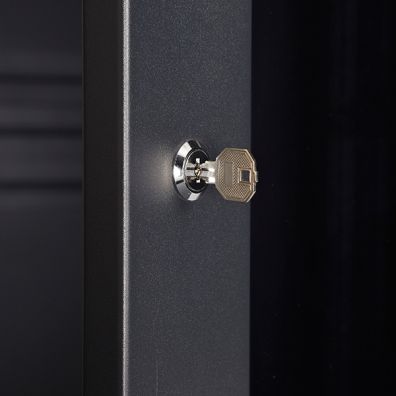

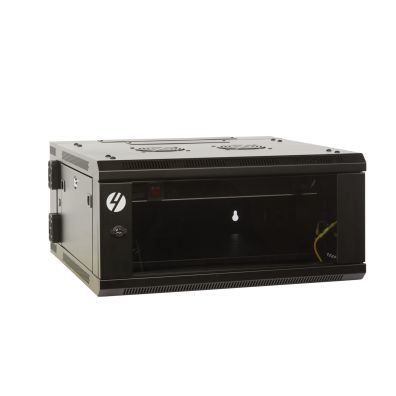

- Lockable tempered glass front door with Cam-lock

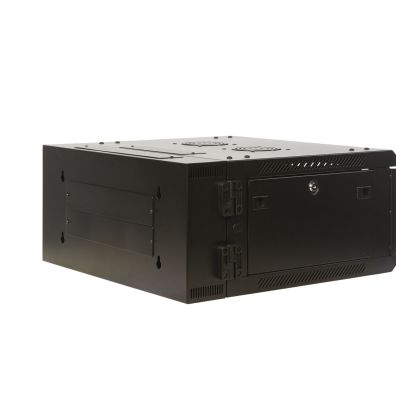

- Solid Lockable steel side & Lockable back door

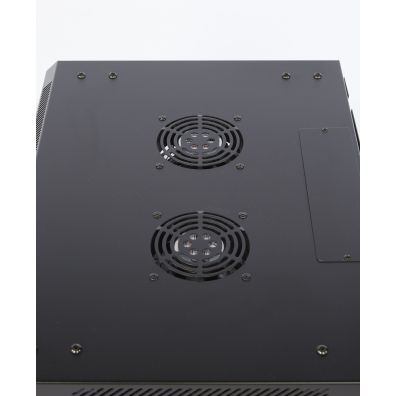

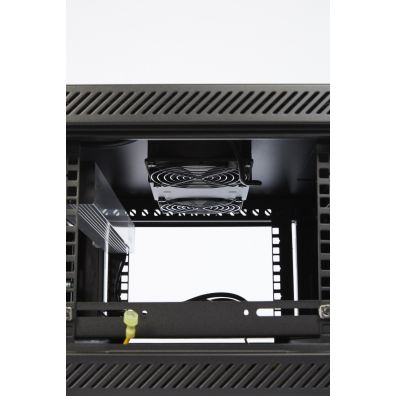

- 2-way Fan Kit

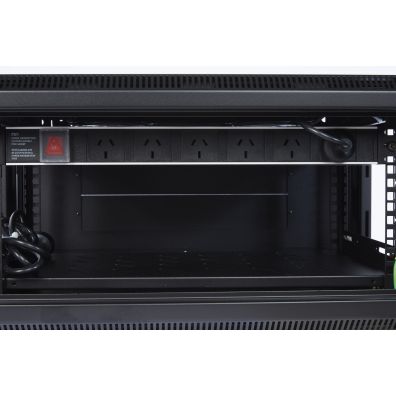

- 6-way rackmount power rail
- 1 x Fixed Shelf

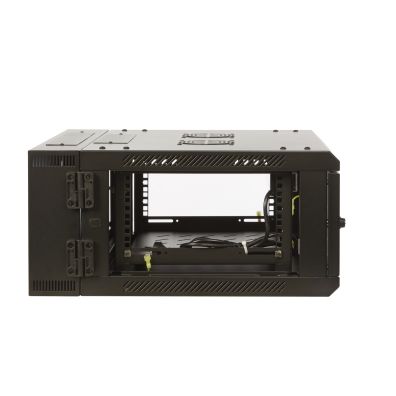

- Removable side panels

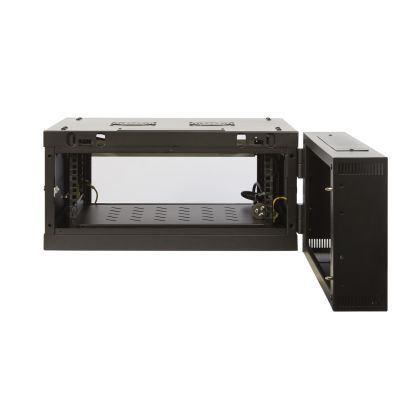

- Hinged swing frame enclosure with Reversible Drop Hinge
- Adjustable L rails Front and Rear of Cabinet with RU Markings
- Cable entry glands on the top and bottom
- 10 Sets of Cage Nuts
- Designed/built to ANSI-310-D, IEC 297-2, DIN 41491/41494 Standards
Specifications
| SKU | 002.013.0455 |
|---|---|
| Manufacturer Part# | 002.013.0455 |
| Rack RU Size | 4RU |
| Cabinet Type | Wall Mount |
| Colour | Black |
| Material | Cold-rolled Steel |
| External Height | 280mm |
| External Width | 600mm |
| External Depth | 600mm |
| Internal Height | 180mm |
| Internal Width | 470mm |
| Internal Depth (Front Rail to Back Door) | 500mm |
| Rails | L Shaped Rails - 2 x Front, 2 x Rear |
| Rail to Rail Depth | 330mm |
| Shelf Quantity | 1 |
| Shelf Depth | 320mm |
| Shelf Width | 470mm |
| Shelf Load Cap | 50kg |
| Reversible Hinges | Yes |
| Tempered Glass | Yes |
| PDU | 1 x 6 Way Rackmount |
| Vertical Cable Management | No |
| Carton Width | 650mm |
| Carton Depth | 650mm |
| Carton Weight | 23kg |
| Warranty | 3 Years |
- Regular price
- $319.71
